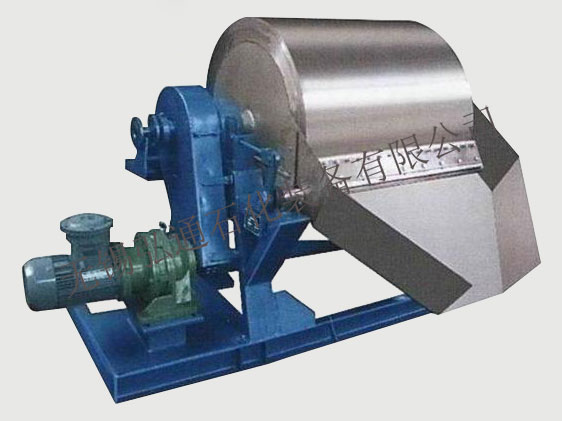

   結片機干燥機

產品工作原理 Working principle of the product
      轉鼓結片機是一個冷卻結晶過程,料盤中熔融料與冷卻的轉鼓接觸,在轉鼓表面形成料膜,通過料膜與股壁間的換熱,使料膜冷卻、結晶、結晶的料膜被刮刀刮下,成為片狀產品。
      轉鼓干燥是通過轉動的轉鼓,以傳熱的方式,將附在轉鼓外壁的物料或帶狀物料進行加熱干燥的一種連續操作的過程。
Drum flaker is a cooling crystallization process. The melt in tray will contact with cooled drum and form a layer of membrane on drum surface. The membrane cools down and crystallizes by heat exchanging between membrane and drum wall. The crystallized membrane will be scraped off to form flaked product.
Drum drying is a continuous operation process to heat and dry materials or strip shaped materials attached on external wall of the drum by heat transfer method when the drum is rotating.


設備特點  Features of the equipment
設有側刮刀,避免轉鼓側端積料
It is set with side scraper which avoids material accumulating
on side of the drum side product material
設備結構緊湊,占地面積小
Compact structure of the equipment with small floor  area
半管夾套式料盤,安全可靠
Semi-pipe jacketed tray which is safe and reliable
霧化冷卻,冷卻效果好
無級變速,轉鼓轉速可調
Infinitely variable speed and adjustable drum speed
轉鼓精度高
High precision of the drum
適應范圍廣,操作簡便、靈活
Wide application scope with easy and flexible operation
采用多組刮刀,調節靈活
Many groups of scrapers are used which realize flexible regulating
多功能,既可結片又可干燥
Multi-functional for flaking and drying

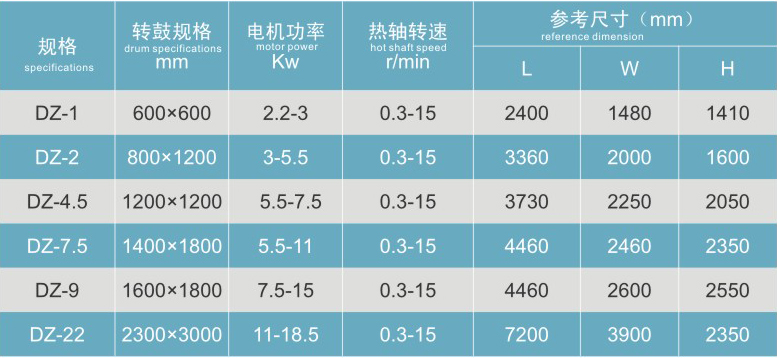

主要技術參數參考表/Reference table of main technical parameters
